Digital Colouring with Photoshop

By Troy Packer

Step 4. Adding the Wow Factor

In essence this is the Sarah Lee Pastry technique. We create “layer upon layer upon layer”.

An easy way to make the image richer and give it a bit more depth is to duplicate the original shaded layer and to colourize it. This can serve a double purpose and give the skin a translucent look also. The image below left is what we have and the image below right is the result of our second colourized “Shaded” layer.

Digital Colouring with Photoshop 08

First obviously, duplicate the “shaded” layer. I named this new layer “Transluence_Red”.

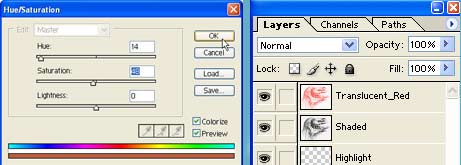

Image >> Adjustments >> Hue/Saturation

Digital Colouring with Photoshop 09

I use both hue and saturation and sometimes the lightness too. The colour balance is another that can be helpful to do minor tweaks, it’s actually really good to get into the habit of using that. I use it quite a bit at work for colour correcting.

Digital Colouring with Photoshop 10

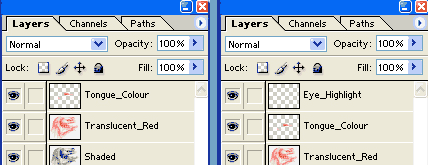

Next (the image above left) I gave the tongue a bit more colour. I just duplicated the transulent red layer and erased all but that area. See the image of my layer palette below.

I then created a layer to add a few more highlights for the eye and tongue to give it more of a wet look and to help bring them out a bit more.

Digital Colouring with Photoshop 11

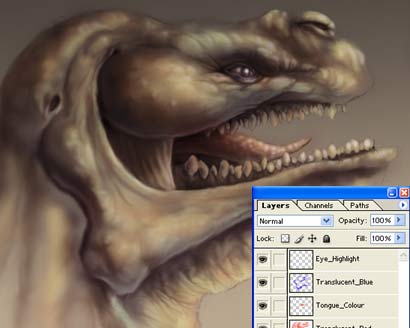

In the image below you can see there are more cooler tones. I did this by duplicating the translucent red layer again I erased sections and changed the colour to something a little cooler. This purple/blue gives the impression of a fill light and helps to give a bit more depth.

Digital Colouring with Photoshop 12

On the next step of this tutorial we will add a background and experiment with altering the colour of the existing layers.

Step 5. Background and Colour Experimentation

In the image below you can see the background I created. It consists of a basic stone texture with a hotspot added to force the main subject to the front.

Digital Colouring with Photoshop 13

To create the stone texture background…

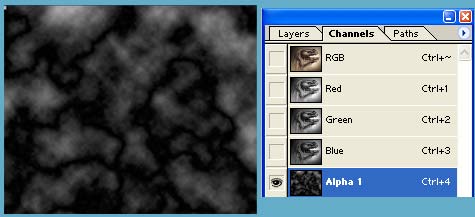

Duplicate the gradient layer. Then go into the channels tab.
Create a new alpha (you can name this stone or whatever) and apply a difference cloud filter
Filter >> Render >> Difference Cloud
ctrl f will keep applying the filter until you get something you like.

You can apply a noise filter if you like, not too much though because it can get too grainy looking.

Now back in your layer palette click on the duplicated gradient layer (make it active).
Add the light Filter >> Render >> Lighting Effects

On the left you can see the image and it has an ellipse around it. You can grab the points on the ellipse and move it around the image. One point projects a light source, the tighter the circle the brighter it will become. Try and get the ellipse to surround the whole image without burning it out. BEFORE YOU CLICK OK…

At the bottom of the Lighting Effects Menu there is a dropdown that is Texture Channel. Make sure you select “Alpha 1” (or whatever you named the new alpha you created). You will see the image on the left change to a stoney look.

Then all you have to do is adjust the mountainous slider to your liking.

Easy huh? You can play around with the settings but I just used the defaults. Once this is done I used the dodge and burn tool to brighten and darken areas but it’s not really necessary.

Digital Colouring with Photoshop 14

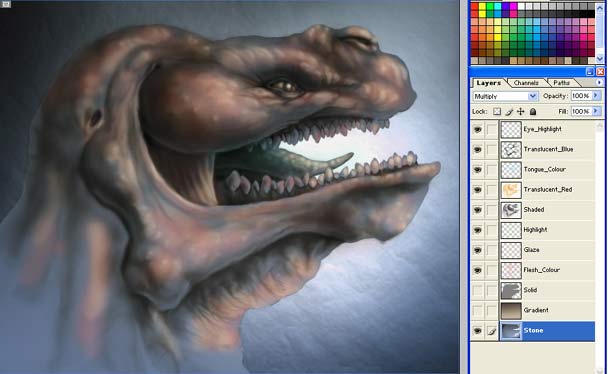

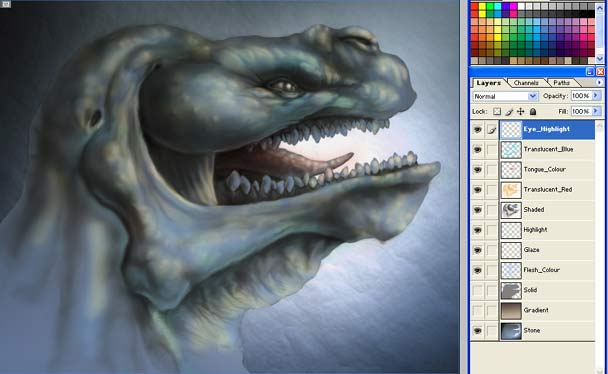

If you look closely at the layer palettes below you can see that I have altered the hue/saturation/brightness of various layers to achieve the different results. By keeping your colour work on seperate layers you can virtually alter every aspect of the final look.

Digital Colouring with Photoshop 15

Digital Colouring with Photoshop 16

So that’s it!
I hope you enjoyed this digital colouring tutorial and maybe even learnt something new along the way.

-Troy Packer
